Signal fire Ai-30 Fusion Splicer High-Precision One-Step Fiber Cutter Integrated, Visible Core Fusion Splicer Core Alignment W/Built-in VFL & OPM Function and 3 in 1 Optical Fiber Holder

★★★★★ 4.9 69 reviews

US$420.00
Price when purchased online
Free shipping Free 30-day returns

Sold and shipped by farmaciajosealonso.es
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$420.00
Price when purchased online
Free shipping Free 30-day returns

How do you want your item?
You get 30 days free! Choose a plan at checkout.
Shipping
Arrives Apr 17
Free
Pickup
Check nearby
Delivery
Not available

Sold and shipped by farmaciajosealonso.es
Free 30-day returns Details

Product details

Management number 211707810 Release Date 2026/04/04 List Price US$420.00 Model Number 211707810
Category
  • 【Visible Fiber Cores】- Signal fire fusion splicer AI-30 is the fourth-generation optical fiber fusion splicer with visible fiber cores, with an accuracy of up to 0.05 μm. The AI-30 fusion splicing machine uses a powerful high-speed motor that allows fast 6 second splice time and 15 second heat time, continuous splice and heats about 240 times.
  • 【 Automatic Delayed Return Electric ONE-STEP Cleaver】- Perfectly solves the problem of traditional mechanical one step cleaver back cutting scratching the fiber end face. The factory standard delay time is set to 0.5 seconds, and the adjustable range is 0.2 seconds to 2 seconds. The fiber splicer machine integrates optical fiber cleaver, waste fiber box and fiber cleaning brush which makes your operation more convenient. After placing the fiber, make sure that the fiber has passed the far right of the cutter, the lid is closed and automatically cut. (NOTE: PLEASE KEEP THE CLEAVER CLEAN WHEN USING IT, OTHERWISE IT WILL AFFECT THE ACCURACY.)

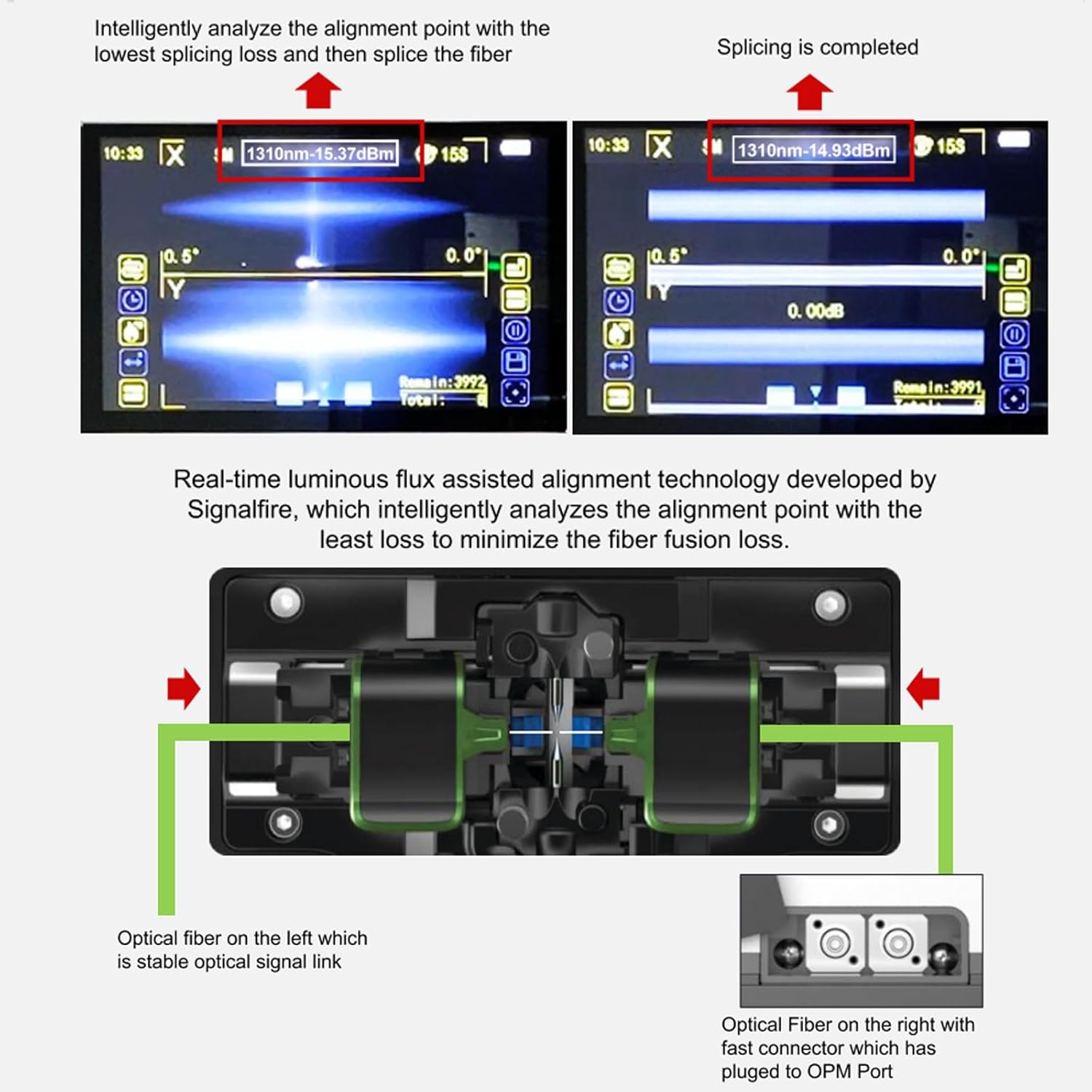

  • 【Built-In Power Meter & VFL】- Using the latest core alignment technology with auto-focus and six motors. Effectively measure connection losses, verify continuity, and help evaluate fiber link transmission quality. OPM can be switch between the wavelength of 850nm; 1300nm, 1310nm, 1490nm, 1550nm, 1625nm,980nm,1270nm,1577nm and 1650nm. VFL can be switch between three states power: 15mW, 2Hz flashing and steady on mode.
  • 【Clear LCD & Long Time Standby】- With 5-inch high-resolution screen, it is up to 320 times the focus magnifications when X/Y Axis displayed separately, 200 times focused magnifications when X and Y Axis dual display. 7800 mah high-capacity lithium battery, charging time ≤ 3.5 hours.
  • 【Intelligent Interaction】- This splicing heating machine can be connected to mobile app, ten different languages can be switched like English, French, Russia, Italian, Portuguese, polish, Spanish, Thai, Arabic which is convenient for customers to use. You can check the data by your mobile phone and downloaded or output at any time, also the splicing records can be stored indefinitel.
Color Green
Model AI-30
Brand Name Signal fire
Style Name AI-30
Manufacturer Signal fire
Item Dimensions 5.51 x 5.51 x 9.45 inches
