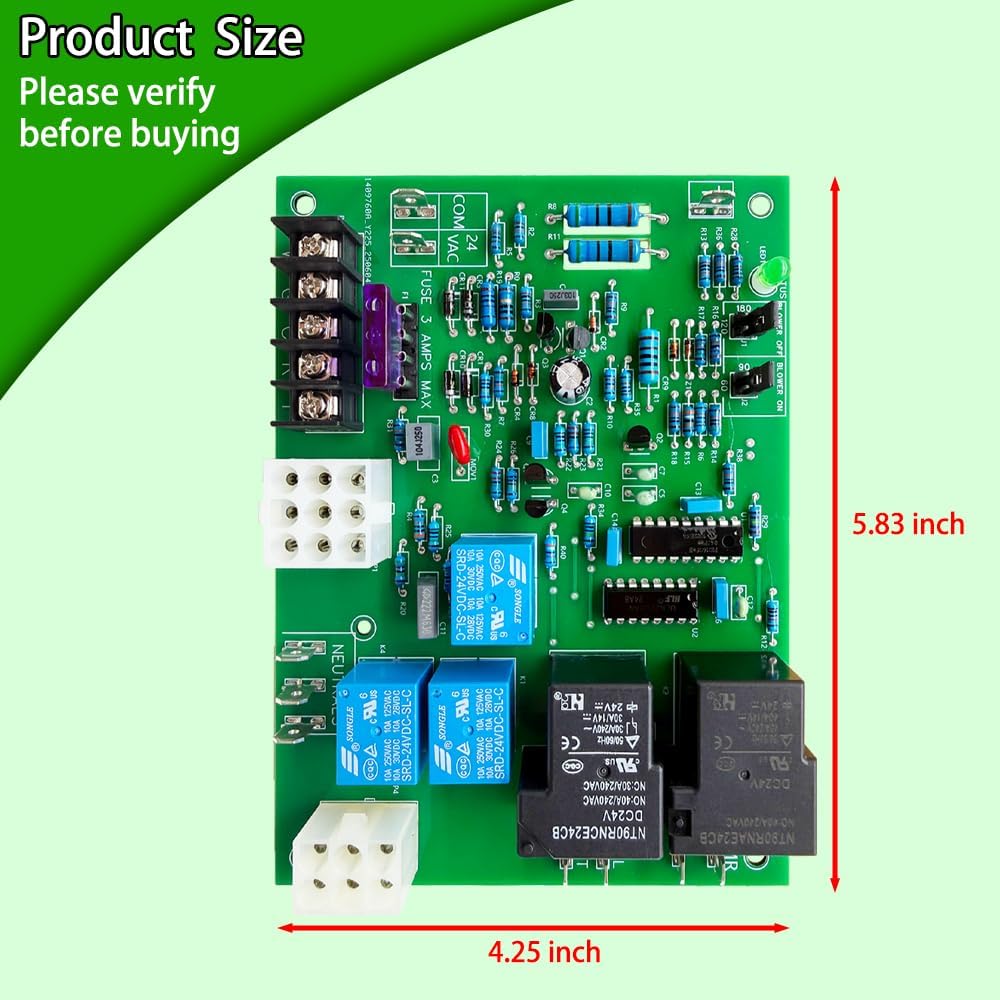

S1-7990-319P ICM2801 Furnace Control Circuit Board Fit for DGAA, DGAH, DGAM, DGAT, DLAS and more 031-01910-000 031-01932-002 7990-319P

Attention: Not applicable to DGAT-BDE series furnaces. Fit for HVAC applications (furnace types starting with DGAT/DGAA/DLAS/DGAH/DGAM and more)

• Fit models： DGAA, DGAH, DGAM, DGAT, DLAS and more. Suitable for the following furnace models： DGAA056BDTA, DGAA056BDTB, DGAA070BDTA, DGAA070BDTB, DGAA077BDTA, DGAA077BDTB, DGAA090BDTA, DGAA090BDTB |DGAH056BBSA, DGAH056BBSB, DGAH077BBSA, DGAH077BBSB |DGAM056BDE, DGAM075BDD, DGAM075BDE, DGAM056BDF, DGAM075BDF |DGAT056BDD, DGAT056BDE, DGAT056BDF, DGAT070BDD, DGAT070BDE, DGAT070BDF, DGAT075BDD, DGAT075BDE, DGAT075BDF, DGAT090BDD, DGAT090BDE, DGAT090BDF |DLAS056BDE, DLAS056BDF, DLAS056E, DLAS075BDD, DLAS075BDE, DLAS075BDF.
• Replace Part Number: 7956-318P, 7956-318P/A, 7956-319, 7956-3191, 7956-319P, S1-7956-319P, 7990-318, 7990-318P, 7990-318P/A, S1-7990-318P, S1-7990-318P/A, 7990-319, 7990-319P, S1-7990-319P, 7990-320, 7990-320P, 031-01910-000, 031-01932-000, 031-01932-001, 031-01932-002, S1-03101910000, S1-03101932000, S1-03101932001, S1-03101932002, 1012-956, 1012-956A, 1012-83-9561, 1012-83-9564A, ICM2801, CIB7990, 67295, 082656
• Voltage Range: Line (98 to 132 VAC) @ 60Hz / Ignitor: 5A @ 120 VAC / Cool Blower: 10A, 2 HP, 240 VAC / Heat: 5A, 240 VAC / Inducer Motor: 4A FLA, 8A LRA @ 120 VAC / Gas Valve: 1.5A @ 30 VAC
• Perfect Design: ① Control Function — Capable of operating the vent motor, blower, hot surface ignitor, and gas valve; ② Monitoring Function — Real-time tracking of timing, trial for ignition, flame sensing, and lockout status; ③ Fault Indication — Status LED indicators display fault codes for easy and quick troubleshooting; ④ Safety Protection — Equipped with reverse polarity protection design to ensure the device is not damaged.
• Note: This control board is suitable for HVAC applications and not for DGAT-BDE series furnaces
