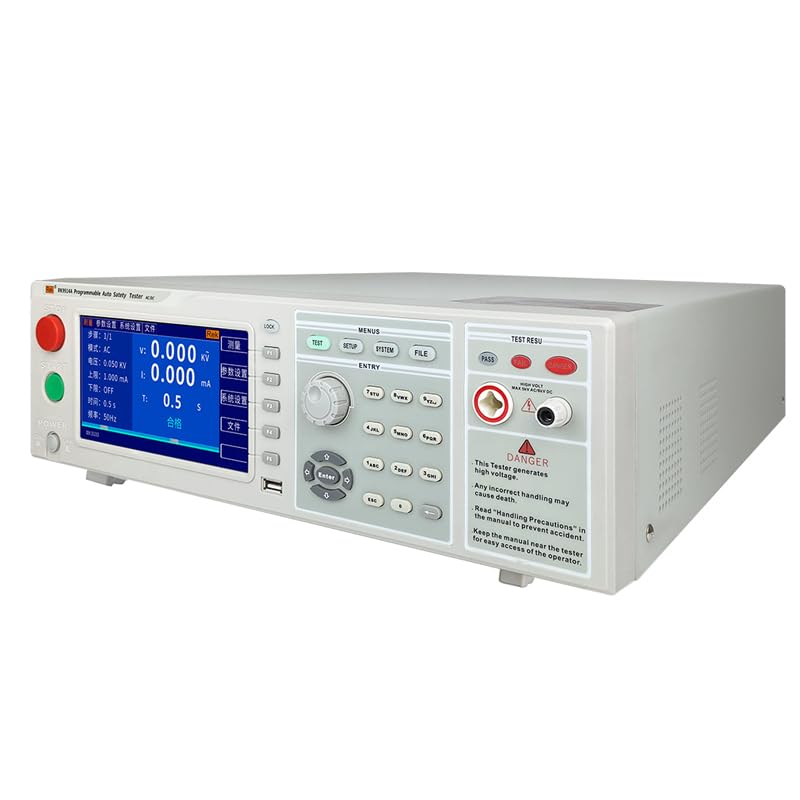

RK9914A Programmable AC DC Withstand Voltage Tester Hipot Tester Voltage AC 5KVA DC 6KVA, Leakage Current AC 100mA DC 50mA, Power AC 500VA DC 300VA
Product details
| Management number | 213683719 | Release Date | 2026/04/12 | List Price | US$1,479.20 | Model Number | 213683719 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This series of program controlled voltage tester adopts high speed MCU and large-scale digital circuit design of high performance safety tester, its output voltage size, output voltage rise, fall, output voltage frequency is completely controlled by MCU, can display real-time breakdown current value and voltage value, and has software calibration function. Equipped with PLC, RS232C, RS485, USB, LAN interface, convenient and computer or PLC system to form a comprehensive test system.
- Timer range:0.0-999.9S;Test time:0.15-999S OFF= Continuous test;Arc detection:0-20mA;Output frequency:50Hz/60Hz;Operating temperature:0-40°C ≤75%RH;Power requirements:110/220 +10% 50Hz/60Hz +3Hz
- RK9914A Voltage: AC 0-5KVA. DC. 0-6KVA. Leakage current AC 0-100mA. DC. 0-50mA. Power: AC.500VA. DC.300VA.
- Using 7 inch TFT(800*480) to display setting parameters and test parameters, the display content is eye-catching, rich, large current, high power
- Adjustable high pressure rise and fall time, can adapt to different test object requirements，DC current minimum resolution 0.001μA

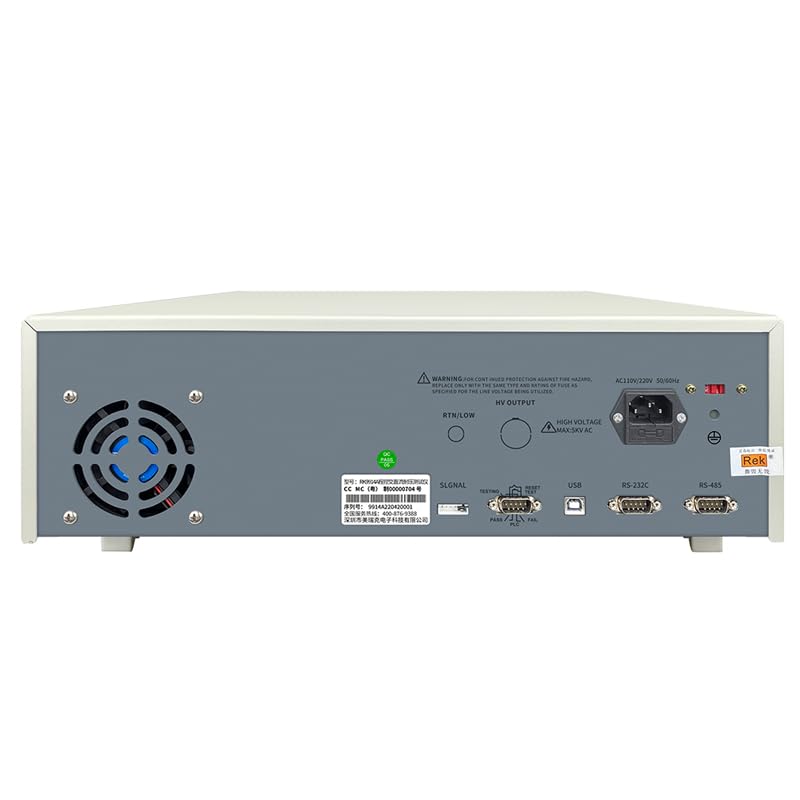

- User-friendly operation interface, support digital key direct input, dial input, operation more simple,Standard with PLC interface, RS232 interface, RS485 interface, USB interface
| Color | Gray |
|---|---|
| Model | RK9914A |
| Brand Name | Tonghui |
| Style Name | Industry |
| Manufacturer | Rek |
| Power Source | Corded Electric |
| Included Components | ABS |
