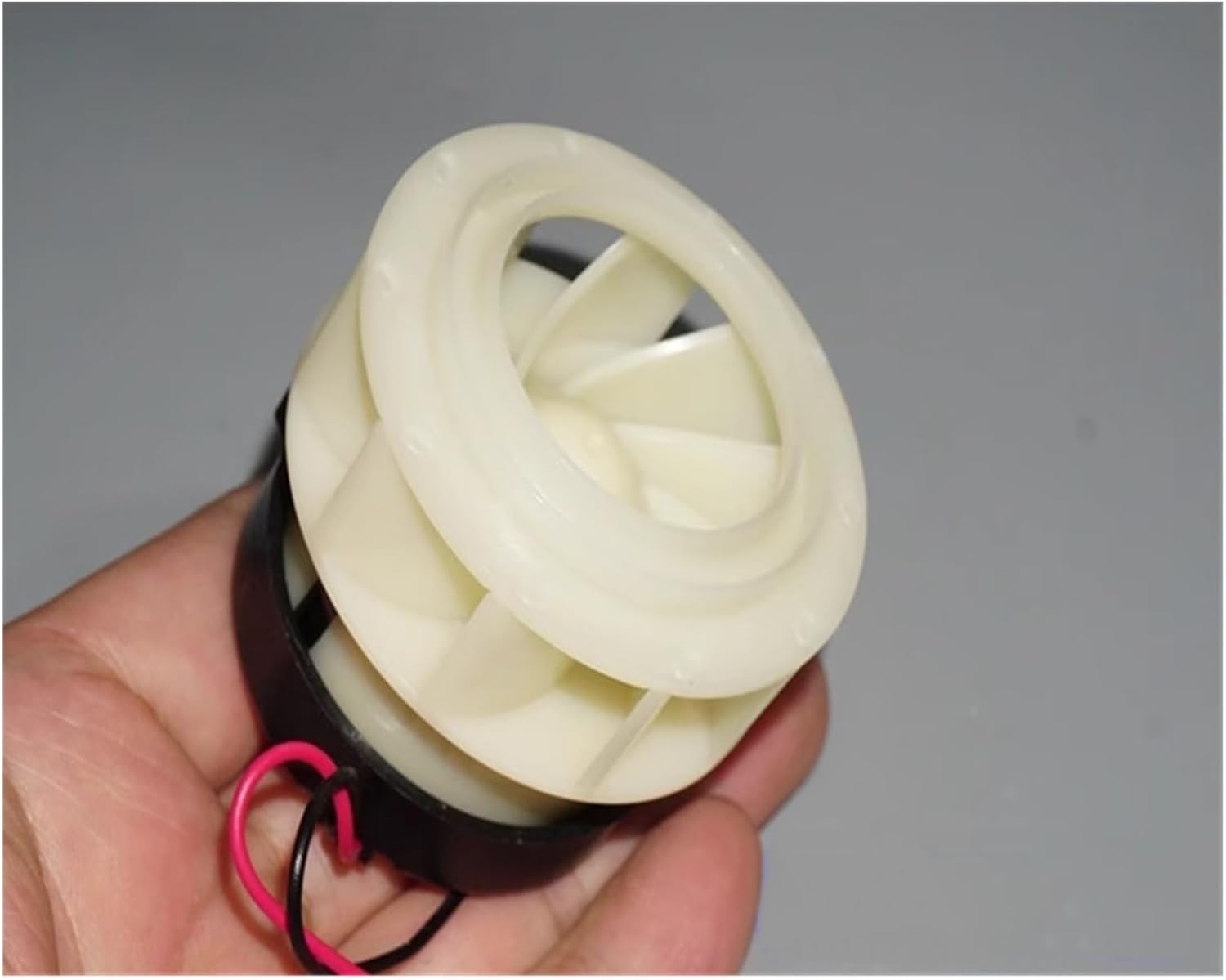

Brushless Motor DC 12V 15V 1.1A Turbo Fan Built-in Drive Sweeper Brushless Motor High Speed ​​Vacuum Fan

MotorsSpecification:NOTE: Brushless DC motors come with a driver board. It is strictly forbidden to connect the positive and negative poles of the power supply. The red wire is connected to the positive pole, and the black wire is connected to the negative pole. If connected incorrectly, the driver board will burn out.Brand new brushless motor high-speed turbo centrifugal fan in stock, the motor is made of good materials, double ball bearings, high-speed brushless motor, fan blade drive balance correction, it is originally a sweeping robot vacuum fan, this fan impeller is usually used with the shell , The middle round hole is the air inlet, and the air outlet is the 360-degree expansion of the outer ring of the impeller. The turbo centrifugal fan has a measured maximum speed of 13,000 rpm and a maximum power of 16W.The nominal voltage of the fan is 15V1.1A, the test voltage supports operation between 7-15V, the current is about 0.45A-1A, and the speed is 7000-13000rpm. The voltage determines the power and speed of the fan, and the specific use needs to be tested by yourself.The power supply requires its own regulated DC power supply. The general current of the power supply needs to be around 1.5-2A. Overvoltage use is strictly prohibited. Connect the red positive and black negative. Be sure to confirm that the positive and negative poles are powered on again. Wrong connection will burn the internal drive circuit.The fan weighs about 72 grams.==========================================packing list:Motor x 1PCSBuilt-in double ball bearingFan blade and rotor are integrated; driving balance drilling correctionBuilt-in driver board; high-power independent MOS driver
