25.4CC Backpack Fogger Sprayer, Gas Powered Fogger Sprayer with 4 Gallon Tank for Lawn, Garden & Yard | Adjustable Nozzle, Ergonomic Design, Professional & Home Gardening Use

SpecificationColor: Red, WhiteMaterial: PP Plastic, Aluminum AlloyFan Rotation Speed :8500 (r/min)Tank Capacity :20L/4.40gal(UK), 5.28gal(US)Displacement: 25.4ccStandard Power :0.7kw/6500-7500r/minMixed Fuel Ratio : 20~25:1Working Pressure: 10-30kgf/cm2Spray Pump Type: High-pressure PumpFuel Tank Capacity: 1.1L/0.24gal(UK), 0.29gal(US)Engine Model: TU26Water Absorption: 10L/minSpray Amount: 8L/minSpraying Range: 2-8m/6.56-24.25ft Parallel Spraying, 4-6m/13.12-19.69ft HeightNozzle Length: 53cm/20.86inchExtension Rod Length: 60cm /23.62inchThree Nozzles Rod Length: 60cm /23.62inchMachine Size: 28*20*61cm/11.02*7.87*24.01inchPackage Size: 42*38*66cm/16.54*14.96*25.98inchGross Weight: 10kg/22lbsHow to Start1. To fill the fuel tank with Mixed oil. The mixing ratio is 1:20-25 for FB/FC grade oil and 1:40-50 for FD grade oil.2. Press the oil bubble under the carburetor until the fuel is filled with fuel.3. Check that the red flameout switch is in a stationary state and close the damper.4. Pull the start rope and turn the damper down after starting to open the damper.5. If there is a start-up reaction that does not start, please increase the throttle slightly and pull the starter rope again. Or open the damper at the next pull.6. After the startup is complete, open the damper.7. Cycle acceleration heat engine. (Do not use a large throttle when there is no water in the tank.)8. In the first 10 hours, the oil mixing ratio is slightly thicker, and then according to the normal ratio.9. Adjust the high-pressure pump return water switch, the water returning clockwise becomes smaller, and the counter-clockwise return water is large, generally placed in the middle position. Never turn off the return water completely. The job is to adjust if the spray pressure is reduced or the engine load is increased.Package Included1* Sprayer1* Filter1* Water Tube1* Bottle3* Rods2* StrapsNotesPlease allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

• 【Wide & Adjustable Spray Range】Our backpack sprayer features a specialized spray gun with an adjustable handle, delivering a parallel spray range of 6.56-24.25 ft and a vertical reach of 13.12-19.69 ft. The extendable nozzle rod helps you cover large areas like lawns and gardens quickly and efficiently, reaching tricky spots with ease.
• 【Powerful Performance】Engineered for demanding tasks, this gas powered fogger sprayer operates at up to 0.7kW with a speed of 6500-7500 r/min. Its high-efficiency motor allows you to complete spraying projects faster, saving valuable time and effort during yard maintenance or garden.

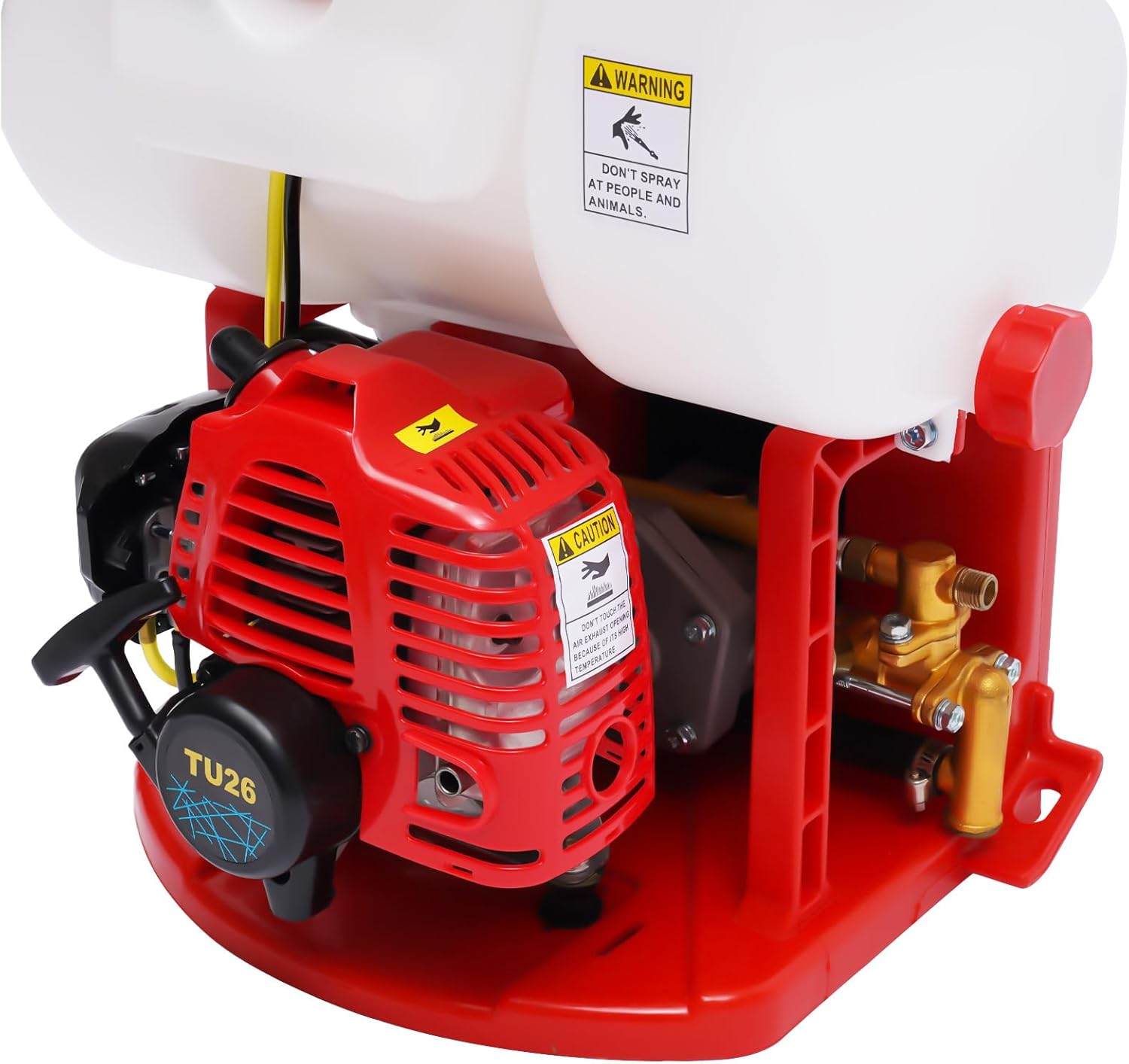

• 【Safety & Easy Start】Designed with user protection in mind, this backpack duster-sprayer utilizes a convenient CDI ignition system for reliable and safe recoil starting. High-temperature components are shielded to help ensure secure operation throughout your gardening or landscaping work.
• 【 Ergonomic Design】Built with a lightweight plastic fan housing and a compact, integrated tank design, this backpack garden sprayer is easy to carry and maneuver. Its balanced structure and low center of gravity provide good stability, making it comfortable to use during extended periods.
• 【Large Capacity】Featuring enlarged cooling holes for effective heat dissipation and generously sized fuel and liquid tanks, this yard sprayer supports longer continuous operation. The design helps maintain consistent performance and reduces the need for frequent refills, suitable for larger outdoor areas.
